LN2 Cooled HgCdTe
Infrared Associates, Inc. offers high quality Liquid Nitrogen cooled HgCdTe detectors. Each detector is optimized for specified wavebands of; 2mm to 5mm, 2mm to 13mm or our FTIR Series with wavebands up to 2mm to 24mm, as shown in the table below.
The FTIR series of HgCdTe detectors are designed to achieve optimum performance in Fourier Transform Infrared spectrometers. The detectors offer the highest sensitivities with cutoffs ranging from 750 to 400 cm-1.
A variety of dewar designs are available, all supplied with wedged windows to eliminate interference effects. In addition to the standard sizes listed in the following table, custom configurations are available on request. Custom packaging, both metal and glass, designed to interface with customer specified cooling systems, is also available.
Contact us to discuss your specific requirements.
Standard Liquid Nitrogen cooled HgCdTe Detectors
| Model Number | Element Size (mm) | FOV=60O | Std. Pkg. | Std. Window | |||||
| Wave-length Peak lp (mm) | Wavelength Response (20% lco) (mm) | D* (lp,10000,1) (cmHz1/2W-1) |
Responsivity (pk, (V/W)) |
Resistance (W) |
Time Constant(msec) | ||||
| 2 mm to 5 mm | |||||||||
| MCT-5-N-0.05 MCT-5-N-0.10 MCT-5-N-0.25 MCT-5-N-0.50 MCT-5-N-1.00 | 0.05 X 0.05 0.10 X 0.10 0.25 X 0.25 0.50 X 0.50 1.00 X 1.00 | ~4.5 | > 5.0 | > 1.0E11 | >100,000 >50,000 >10,000 >4,000 >2,000 | 50-500 | ~1.0 | MSL-8 MSL-12 OR MDL-8 MDL-12 | Sapphire |
| MCT-5-N-2.00 | 2.00 X 2.00 | > 8.0E10 | >1,000 | ||||||
| 2 mm to 13 mm | |||||||||
| MCT-13-.025 MCT-13-0.05 MCT-13-0.10 MCT-13-0.25 | .025 X .025 0.05 X 0.05 0.10 X 0.10 0.25 X 0.25 | ~12.0 | >13.0 (750cm-1) | > 5.0E10 |
>100,000 >60,000 >30,000 >10,000 |
20-100 | ~0.4 | MSL-8 MSL-12 OR MDL-8 MDL-12 | ZnS ZnSe ARGe (2-14mm) |
| MCT-13-0.50 MCT-13-1.00 | 0.50 X 0.50 1.00 X 1.00 | > 4.0E10 |
>5,000 >2,000 |
||||||
| MCT-13-2.00 MCT-13-3.00 | 2.00 X 2.00 3.00 X 3.00 | > 3.0E10 |
>500 >200 |
||||||
| MCT-13-4.00 | 4.00 X 4.00 | > 2.0E10 |
>100 |
||||||
| 2 mm to 24 mm "FTIR Series" | |||||||||
| FTIR-16-0.10 FTIR-16-0.25 FTIR-16-0.50 | 0.10 X 0.10 0.25 X 0.25 0.50 X 0.50 | ~14.0 | >16.6 (600cm-1) | > 4.0E10 |
>10,000 >3,000 >1,500 |
20-100 | ~0.2 | MSL-8 MSL-12 OR MDL-8 MDL-12 | ZnSe/W |
| FTIR-16-1.00 | 1.00 X 1.00 | > 3.0E10 |
>800 |
||||||
| FTIR-16-2.00 | 2.00 X 2.00 | > 2.0E10 |
>200 |

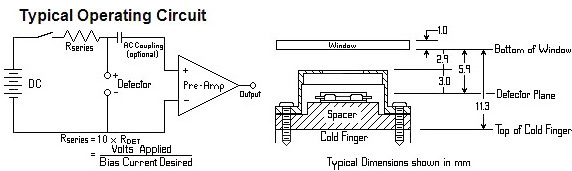

||||||
| FTIR-22-0.25 FTIR-22-0.50 FTIR-22-1.00 | 0.25 X 0.25 0.50 X 0.50 1.00 X 1.00 | ~18.0 | >22.2 (450cm-1) | > 1.0E10 | >700 | 20-100 | ~0.1 | Same as FTIR-16 | KRS-5/W |
| >350 | |||||||||
| >150 | |||||||||
| FTIR-24-0.25 FTIR-24-1.00 | 0.25 X 0.25 1.00 X 1.00 | ~18.0 | >24.0 (415cm-1) | > 5.0E9 | >200 | 20-100 | ~0.1 | Same as FTIR-16 | KRS-5/W |
| >50 | |||||||||
| MSL-8 Side Looking Metal Dewar---8 Hour Hold Time MSL-12 Side Looking Metal Dewar---12 Hour Hold Time MDL-8 Down Looking Metal Dewar---8 Hour Hold Time MDL-12 Down Looking Metal Dewar---12 Hour Hold Time | |||||||||
