InSb/HgCdTe   2-Color



InfraRed Associates, Inc. offers InSb/HgCdTe 2-color infrared detectors for both commercial and military applications. These detectors are constructed to respond to different but adjacent regions of the infrared spectrum. One element has a short wavelength response and the other element responds to longer wavelength radiation. Our unique construction permits both elements to be at the same focal point.
Typical Applications:
  •   Radiometry
  •   Thermal Imaging
  •   Background Discrimination
  •   FTIR Spectroscopy
  •   IR Microscopy

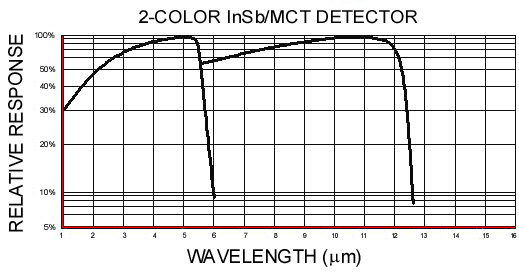

The InSb/HgCdTe two-color detector has an InSb element responding from 1mm to 5.5mm and the HgCdTe element to radiation from 5.5mm to 12.5mm. The HgCdTe element can be tailored to extend its long wavelength response to beyond 25mm. Custom configurations to customer specifications are available.  Contact us to discuss your specific requirements.

Standard InSb/HgCdTe 2-color infrared detectors
Model Number FOV=60O, InSb (lpk,1000,1), HgCdTe (lpk,10000,1) Std. Pkg.  Std. Window

Active Area Element (mm)

 Wavelength Response (20%  lco) (mm)  D*

(cmHz1/2W-1)

 Responsivity Operating

Temp. (K)
2C-.25 InSb HgCdTe q0.25/0.25x0.25 0.25x0.25  1- 5.5        5.5 -12.5  >1.0E11     > 3.0E10 > 3 A/W   >4000V/W   77 MSL-8 MSL-12

or

MDL-8 MDL-12

 ZnSe

or

  ArGe     (2-14mm)
2C-.5 InSb HgCdTe q0.5/0.5x0.5 0.5x0.5  >1.0E11     > 3.0E10 > 3 A/W   >2500V/W
2C- 1 InSb HgCdTe q1/ 1.0x1.0 1.0x1.0  > 1.0E11    > 3.0E10

> 3 A/W   >1000V/W
2C- 2 InSb HgCdTe q2/ 2.0x2.0 2.0x2.0  > 1.0E11    > 2.0E10

> 3 A/W  >250V/W
MSL-8 Side Looking Metal Dewar---8 Hour Hold Time            MSL-12 Side Looking Metal Dewar---12 Hour Hold Time  MDL-8 Down Looking Metal Dewar---8 Hour Hold Time          MDL-12 Down Looking Metal Dewar---12 Hour Hold Time
